CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures -10°C to +60°C.
Precision amplifier movement in brass
MATERIAL
Case: 41mm.(ABS) Black Plastic case with Acrylic snap-in lens.
Movement: Brass

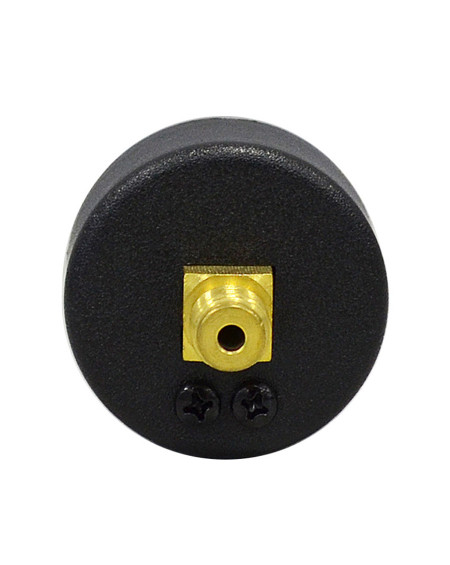

Connection: 1/8'' BSPT, NPT or BSP Thread, brass center back.
Ranges: Vacuum compound and pressure gauge -1bar ~ 0 and 0 ~ 1bar to 25bar.
Protection degree IP32
Accuracy 3-2-3%% Full Scale
Particularly suitable for compressors, pressure reducers, pumps and any other use in the plant and industrial air-operating sector.
