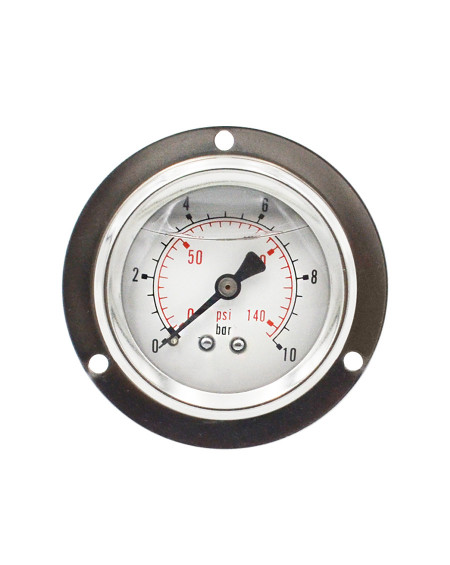

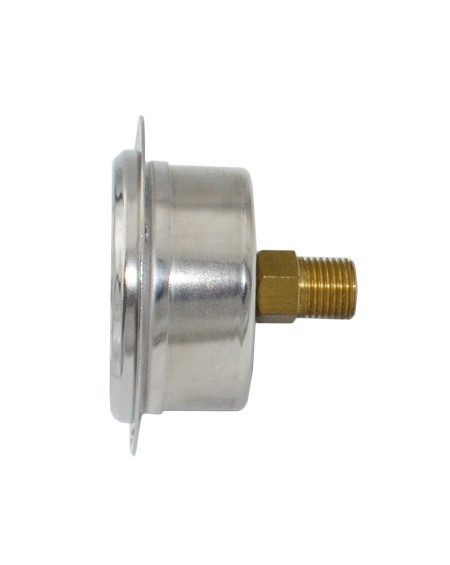

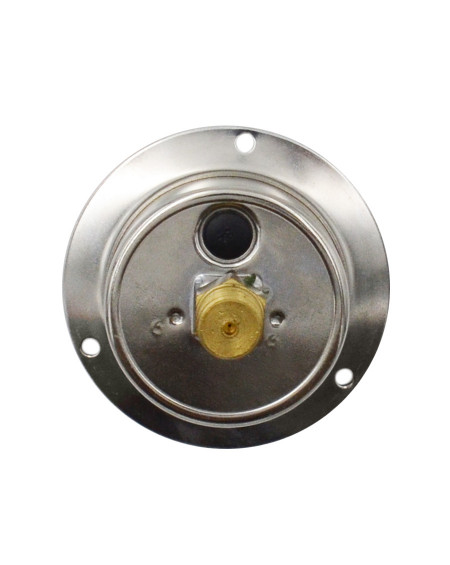

2.0'' (51mm) Diameter, Glycerine Filled Pressure Gauge. Stainless steel 300 series case with front flange, Polycarbonate lens or Safety Glass lens, Brass 1/8'' or 1/4" or 3/8" threads Center back connection.
20VB -SERIES
CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures between -10°C and +60°C compatible.
MATERIAL
Size: 2.0'' (51mm) Diameter.
Case : Stainless steel case with front flange
Movement : Brass
Bourdon Tube: Brass
Connection : 1/8'',1/4'', 3/8'' BSP or BSPT or NPT Thread, brass center back connection.
Ranges: Vacuum, compound and pressure gauge 1bar to 350 bar
Accuracy 3-2-3% Full Scale.
Protection degree IP65.
Particularly sturdy used for plumbing systems, pumps, compressors, machine tools, high pressure water cleaners and refrigerating systems.
Suitable for gaseous or liquid media that will not obstruct the pressure system.
Process industry: power stations, mining, on and offshore, mechanical engineering and plant construction.
