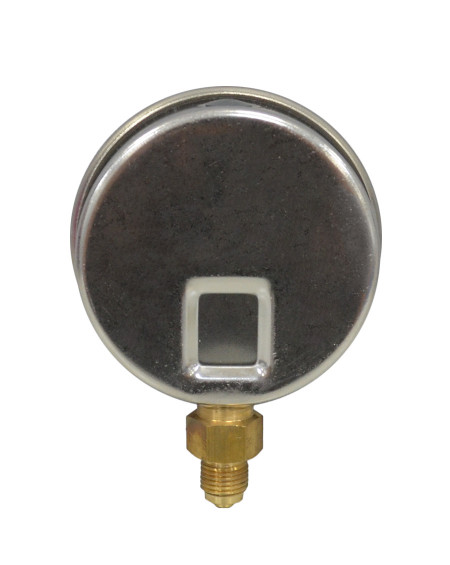

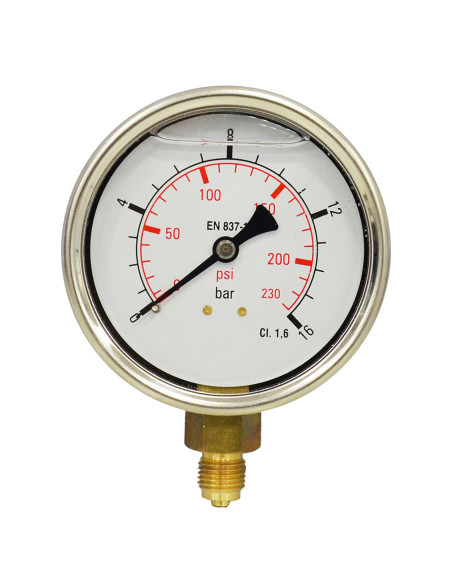

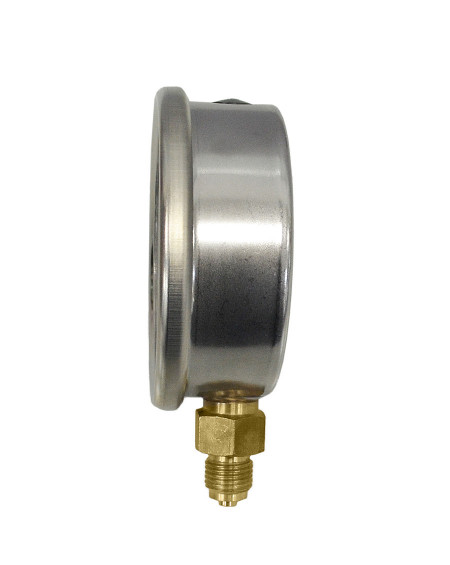

3.0" (80mm) Diameter, Glycerine Filled Pressure Gauge. 304 Original Stainless steel surface case, Polycarbonate lens or Glass or Safety Glass lens, Brass 1/4" or 3/8" threads Bottom connection.
30KL -SERIES
CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures between -10°C and +60°C compatible.
MATERIAL
Size: 3.0'' (78mm) Diameter.
Case : 304 Original Stainless steel surface case,
Movement : Brass
Bourdon Tube: Brass
Connection : 1/4'', 3/8'' Brass Lower mount..
Ranges: Vacuum, compound and pressure gauge 1bar to 600 bar
Particularly sturdy used for plumbing systems, pumps, compressors, machine tools, high pressure water cleaners and refrigerating systems.
Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system.
Process industry: chemical/petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction.
