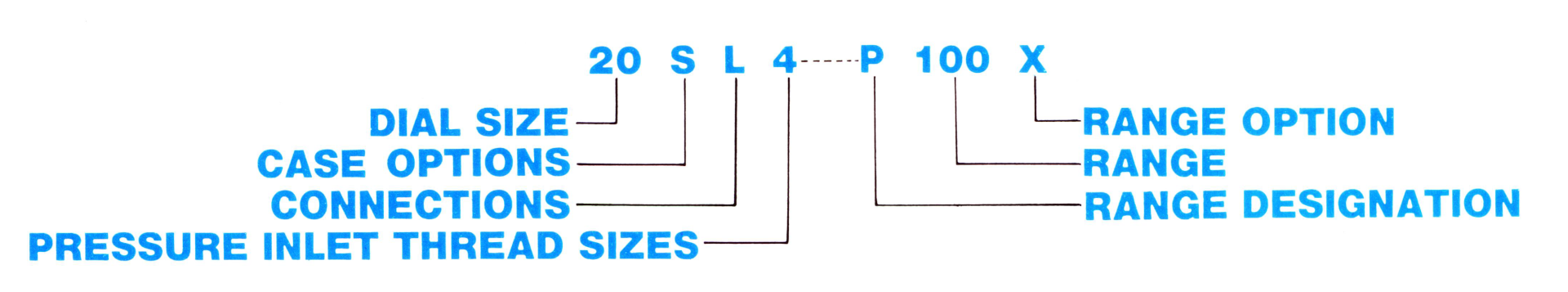

EXAMPLE
DIAL SIZE
10: 7/8'' (23mm) Diameter Dial Size
12: 1¼'' (32mm) Diameter Dial Size
15: 1.5'' (40mm) Diameter Dial Size
20: 2.0'' (50mm) Diameter Dial Size
24: 2.4'' (62mm) Diameter Dial Size
25: 2.5'' (63mm) Diameter Dial Size
30: 3.0'' (76mm) Diameter Dial Size
40: 4.0'' (100mm) Diameter Dial Size
60: 6.0'' (160mm) Diameter Dial Size
22: 27mmx27mm Square Size
33: 30mmx30mm Square Size
41: 45mmx13mm Square Size
42: 40mmx27mm Square Size
43: 40mmx33mm Square Size
44: 40mmx40mm Square Size
CASE OPTIONS
S: Steel black finished case with acrylic snap-in lens, flat dial.
B: Brass polished finished case with one piece bayonet threaded polycarbonate lens cover, cupped dial.
P: ABS (black) plastic case.
G: Painted steel case with one piece bayonet threaded polycarbonate lens cover, cupped dial.
A: Painted steel case with glass lens and black finished steel friction ring, flat dial.
D: Painted steel case with acrylic lens and black finished steel friction ring, flat dial.
C: Steel chrome plate case with chrome steel friction ring and acrylic lens and flat dial.
E: Steel chrome plate case with snap-in lens, flat dial.
F: Steel chrome plate case with one piece polycarbonate lens cover, cupped dial.
K: Stainless steel 300 series case. (liquid fillable). This gauge supplied with brass measuring system.
H: Stainless steel 300 series case (liquid fillable). This gauge supplied with stainless steel measuring system.
J: Stainless steel 300 series case with one piece snap-in polycarbonate lens. (Not liquid fillable). This gauge supplied with stainless steel measuring element, flat dial.
M: Stainless steel 300 series case with stainless steel series 300 friction ring with polycarbonate lens. (This gauge not liquid fillable), flat dial.
N: Polycarbonate cover for use with 10 dial size gauge only, flat dial.
L: ABS black plastic liquid fillable heavy duty movement.
T: Steel black case polycarbonate lens cover, cupped dial.
U: Drawn steel U-Clamp case.
Q: Steel black finished case with front flange.
R: Stainless steel U-Clamp case. This gauge supplied with brass measuring system.
V: Stainless steel gauge with front flange. This gauge supplied with brass measuring system.
Z: Stainless steel gauge with front flange. This gauge supplied with stainless steel measuring system.
Y: Steel black finished case with chrome friction ring, acrylic lens.
I: Plastic square case.
O: Steel zinc place case with glass lens and chrome steel seal the frame ring and flat dial.
W: Plastic case with front flange.
X: Other
CONNECTION
L: Lower male connection location, brass finish.
P: Center back male connection plastic.
B: Center back male connection, brass finish.
R: Lower male connection location, nickel finish.
V: Center back male connection location, nickel finish.
U: Center back male connection location, brass finish with U/clamp for panel mounting. Case supplied with front flange.
Y: Center back male connection location for flush mounting. Case supplied with front flange.
I: Lower male connection location, stainless Steel.
J: Center back male location connection, stainless Steel.
F: Lower back male connection. Case supplied with front flange.
E: Center back male connection location, stainless Steel, with U-Clamp for panel mounting.
Case supplied with front flange.
W: Lower back male connection.
D: Dual back male connection.
C: Center back male connection for one piece, brass finish.
A: Lower male connection for one piece, brass finish.
PRESSURE INLET THREAD SIZES
- 2:
- 1/2" thread size
- 4:
- 1/4" thread size
- 8:
- 1/8" thread size
- 3:
- 3/8" thread size
- X:
- None of the above (please list details)
RANGE DESIGNATION
- P:
- Gauge is scaled in pressure value only.
- V:
- Gauge is scaled in vacuum value only.
- C:
- Gauge is scaled in both pressure and vacuum (compound) values.
- F:
- Gauge is scaled to measure flow rate.
RANGE DESIGNATION
Denotes full scale range in psi measurement 0-15, 0-15, 0-30, 0-60, 0-100, 0-160, 0-200, 0-300, 0-400, 0-600, 0-1000, 0-1500, 0-2000, 0-3000, 0-4000, 0-5000, 0-6000, 0-10000, 0-15000 psig.
LAST LETTER RANGE OPTION
- X:
- Denotes dual scale, i.e. psi and metric.
- W:
- Denotes gauge cleaned for gaseous oxygen service.
- L:
- Litres per minute.
- R:
- Refrigeration scales.
- D:
- Digital readout
PRESSURE CONVERSION TABLE
MERCURY | WATER | |||||||
---|---|---|---|---|---|---|---|---|
Kg/cm2 | bar | atm | PSI lb/in2 |
kPa | Hg | H2O (Aq) | ||
m | in | m | ft | |||||
1 | 0.9807 | 0.9678 | 14.22 | 98.07 | 0.7356 | 28.96 | 10.000 | 32.81 |
1.0197 | 1 | 0.9869 | 14.50 | 100.00 | 0.7501 | 29.53 | 10.197 | 33.43 |
1.0332 | 1.0133 | 1 | 14.70 | 101.32 | 0.760 | 29.92 | 10.33 | 33.90 |
0.0703 | 0.0689 | 0.0680 | 1 | 6.894 | 0.0517 | 2.036 | 0.703 | 2.03 |
0.0102 | 0.0100 | 0.0099 | 0.1451 | 1 | 0.0075 | 0.2959 | 0.1020 | 0.3343 |
1.3595 | 1.3332 | 1.3158 | 19.34 | 133.32 | 1 | 39.37 | 13.6 | 44.60 |
0.0345 | 0.0338 | 0.0334 | 0.491 | 3.383 | 0.0254 | 1 | 0.345 | 1.133 |
0.1000 | 0.0981 | 0.0967 | 1.422 | 9.807 | 0.0735 | 2.896 | 1 | 3.281 |
0.0305 | 0.0299 | 0.0295 | 0.4335 | 2.991 | 0.0224 | 0.88 | 0.305 | 1 |
