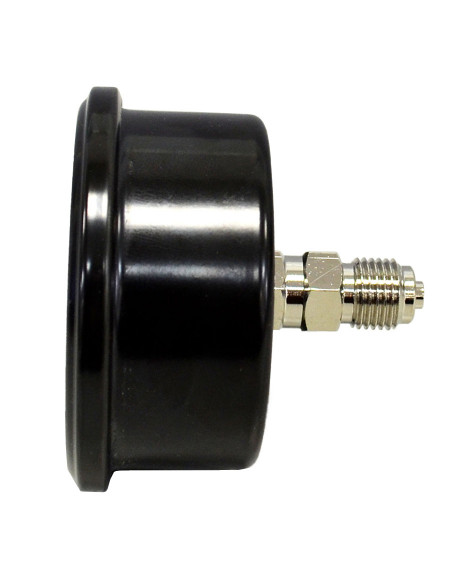

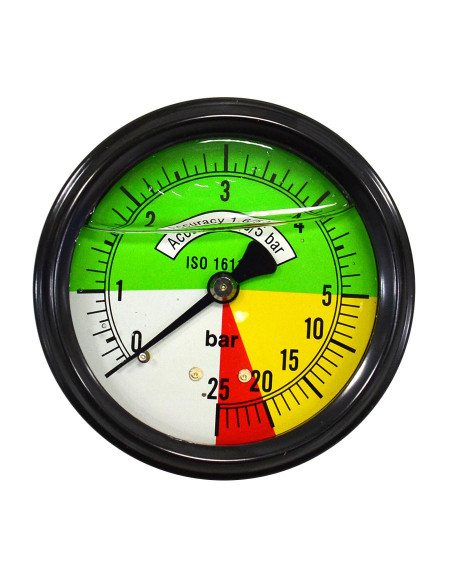

2.5"(63mm) Diameter,Isometric Glycerine Filled Pressure Gauge. Black Friction Stainless steel 300 series case, Polycarbonate lens or Acrylic lens, Nickle Brass 1/4" threads Center Back connection.
25KB-BF-ISO -SERIES
CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures between -20°C and +80°C compatible.
MATERIAL
Size: 2.5'' (63mm) Diameter.
Case : Black Friction Stainless steel case
Movement : Brass.
Bourdon Tube: Stainless Steel.

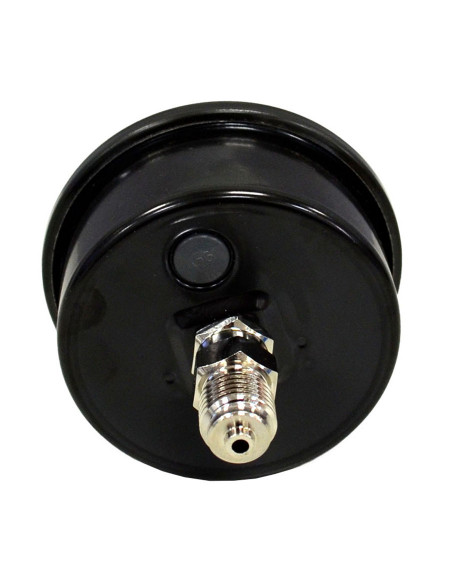

Connection : 1/4'' BSPT or BSP or NPT Thread Nickle Brass Center Back mount
Ranges:pressure gauge 0-5bar-25bar, 0-8bar-25bar or 0-15bar-60bar
