It allows the detection of exceeding the maximum overpressure limit, by a non-return block of the pointer.
The device ensures that the pressure gauge has been properly used.
In case of excessive pressure peaks (over the max. overpressure limit).
The non-return device blocks the pointer. As a result, the user cannot ask for a not due replacement from the vendor.
The pin stop device can be applied to all hydraulic series and isometric manometers.
Isometric Gauge with over Pressure Stop Spring Pointer Design.
CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures between -20°C and +80°C compatible.
MATERIAL
Size: 4'' (100mm) Diameter.
Case : Stainless steel case
Movement : Stainless Steel.
Bourdon Tube: Stainless Steel.
Connection : 1/4'' BSPT or BSP or NPT Thread Stainless Steel Lower mount.
The Gauge is with over Pressure Stop Spring Pointer.
Ranges: pressure gauge 0-5bar-25bar, 0-8bar-25bar or 0-15bar-60bar
Protection degree IP65

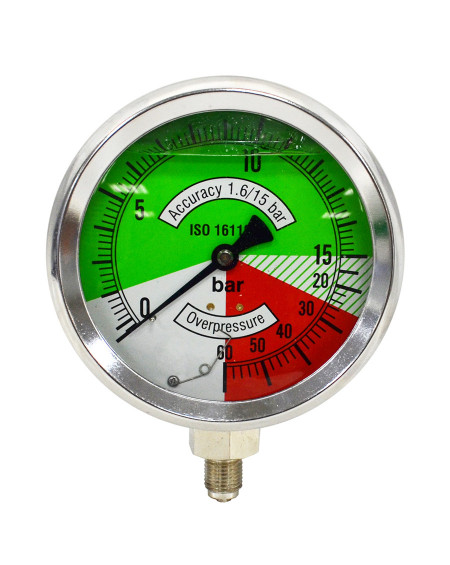

ISO-SP-450x565.jpg)

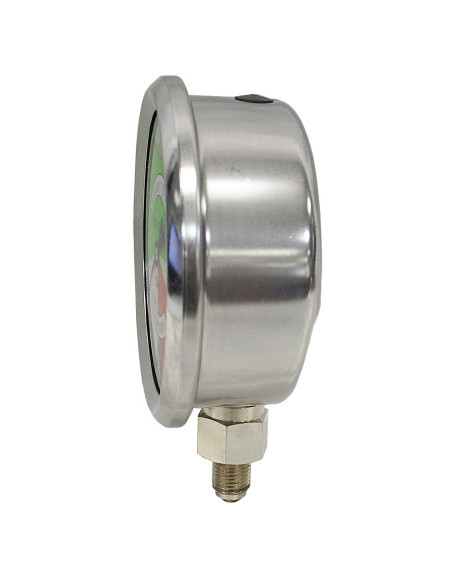

ISO-SP-1-450x565.jpg)

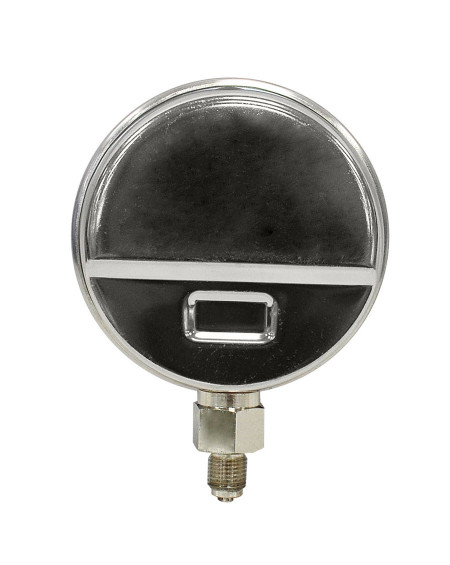

ISO-SP-2-450x565.jpg)
