It allows the detection of exceeding the maximum overpressure limit, by a non-return block of the pointer.
The device ensures that the pressure gauge has been properly used.
In case of excessive pressure peaks (over the max. overpressure limit).
The non-return device blocks the pointer.
As a result, the user cannot ask for a not due replacement from the vendor.
The pin stop device can be applied to all hydraulic series and isometric manometers.

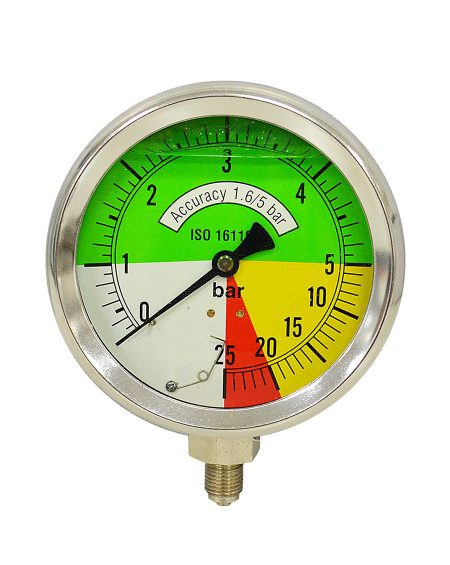

Isometric Gauge with over Pressure Stop Spring Pointer Design.
40KL-ISO-SP -SERIES
CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures between -20°C and +80°C compatible.
MATERIAL
Size: 4'' (100mm) Diameter.

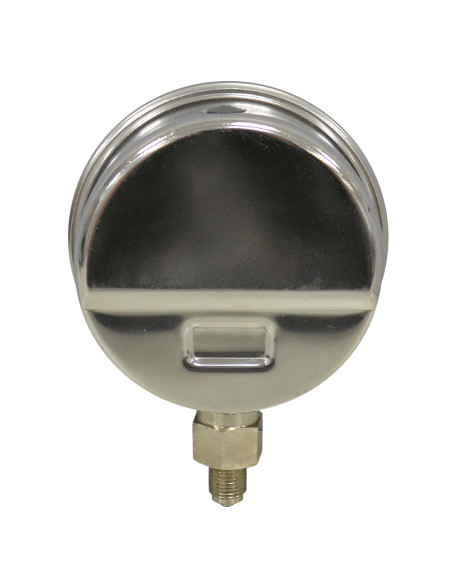

Case : Stainless steel case
Movement : Brass.
Bourdon Tube: Stainless Steel.

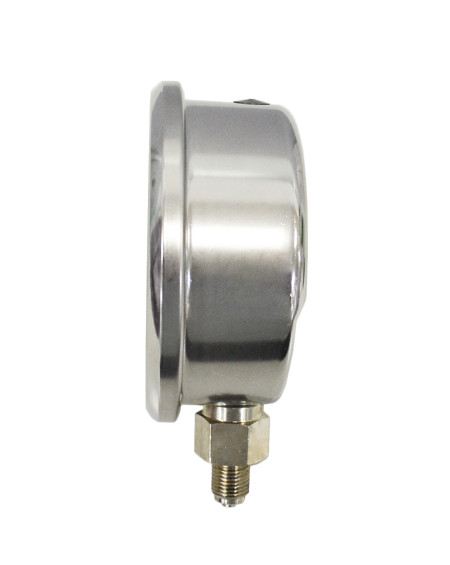

Connection : 1/4'' BSPT or BSP or NPT Thread Nickel Brass Lower mount.
The Gauge is with over Pressure Stop Spring Pointer.
Ranges: pressure gauge 0-5bar-25bar, 0-8bar-25bar or 0-15bar-60bar
Protection degree IP65
