Over Pressure Pin Stop Spring
It allows the detection of exceeding the maximum overpressure limit, by a non-return block of the pointer.
The device ensures that the pressure gauge has been properly used.
In case of excessive pressure peacks (over the max. overpressure limit).
The non-return device blocks the pointer. As a result, the user cannot ask for a not due replacement from the vendor.
The pin stop device can be applied to all hydraulic series and isometric manometers.

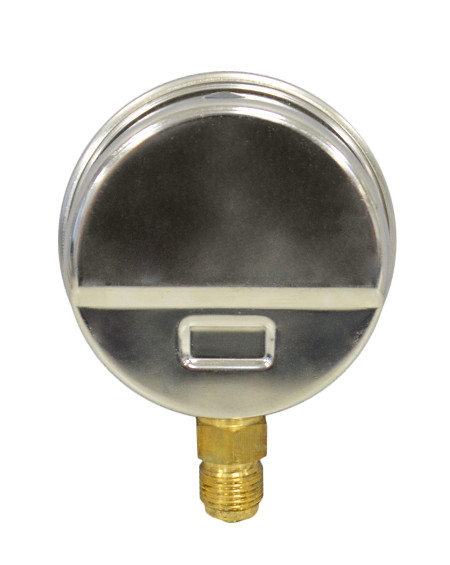

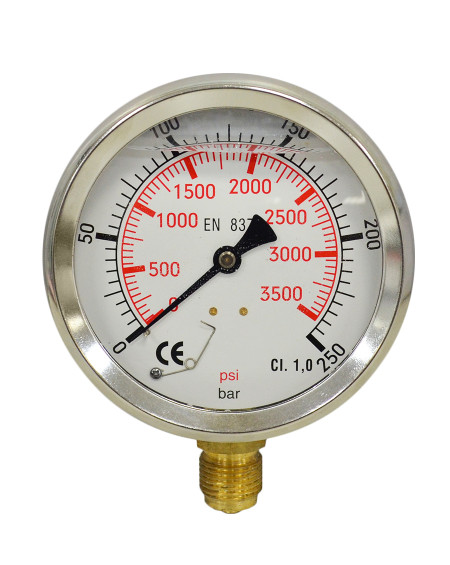

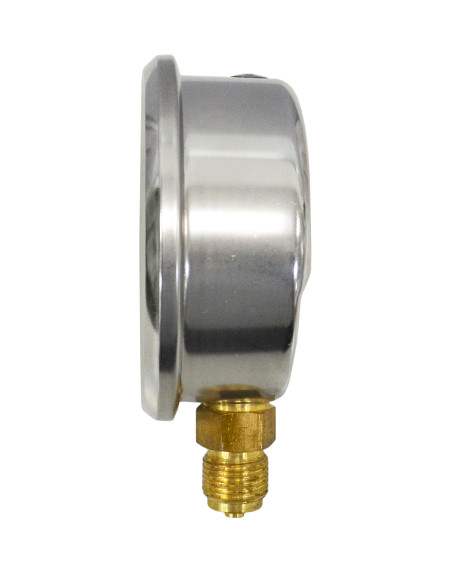

Hydraulic Gauge with over Pressure Stop Spring Pointer Design.
40KL-SP -SERIES
CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures between -20°C and +60°C compatible.
MATERIAL
Size: 4'' (100mm) Diameter.
Case : Stainless steel case
Movement : Brass.
Bourdon Tube: Brass.
Connection : 1/4'', 3/8'' or 1/2'' BSPT or BSP or NPT Brass Lower mount.
The Gauge is with over Pressure Pin Stop Spring.
Ranges: pressure gauge 0-2 bar, to 0-250bar.
Particularly sturdy used for plumbing systems, pumps, compressors, machine tools, high pressure water cleaners and refrigerating systems.
