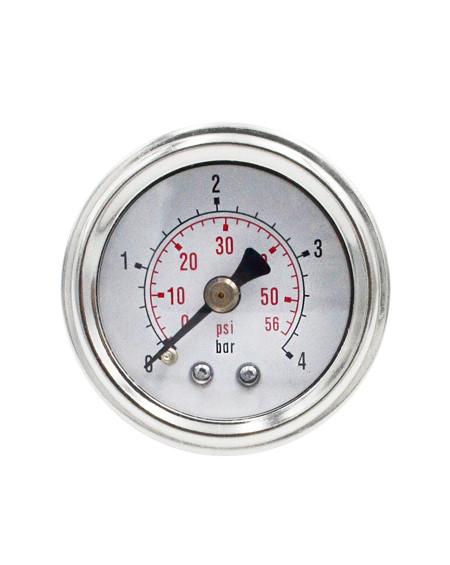

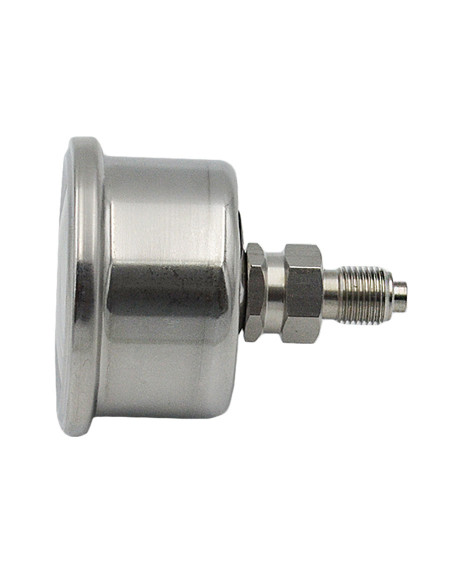

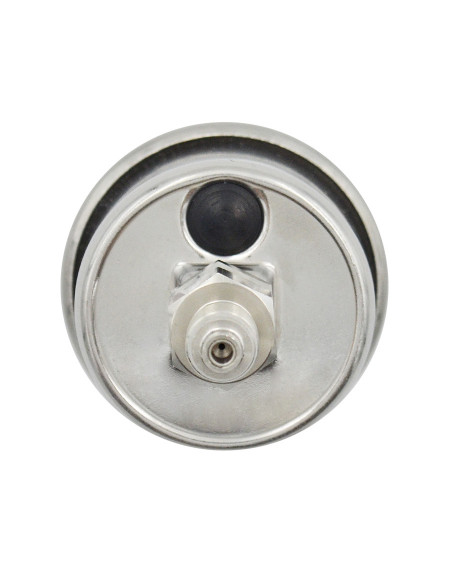

1.5" (42mm) Diameter, All Stainless Steel Liquid Filled Design Pressure Gauge. Stainless steel 300 series case, Polycarbonate lens or Safety Glass lens, #316 Stainless Steel 1/8" or 1/4'' threads Center back connection. (without Liquid Filled is Dry Gauge.)
15HJ-SERIES
CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures between -20°C and +80°C compatible.
MATERIAL
Size: 1.5'' (42mm) Diameter.
Case : Stainless steel case
Movement : #316 Stainless Steel.
Bourdon Tube: Stainless Steel.
Connection : 1/8'', 1/4''BSP or BSPT or NPT Thread, Stainless Center Back Connection.
Ranges: Vacuum, compound and pressure gauge 1bar to 350 bar
(without Liquid Filled is Dry Gauge.)
Protection degree IP65
Accuracy 3-2-3% Full Scale or Accuracy 1.6%.
Particularly sturdy used for plumbing systems, pumps, compressors, machine tools, high pressure water cleaners and refrigerating systems.
Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system.
Process industry: chemical/petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction.
