It allows the detection of exceeding the spring arrangement pressure definitely overpressure limit, by a non-return block of the pointer.
The device ensures that the pressure gauge has been properly used. In case of excessive pressure peaks (over the spring arrangement pressure definitely overpressure limit). The non-return device blocks the pointer.
As a result, the user cannot ask for a not due replacement from the vendor.
The pin stop device can be applied to all hydraulic series manometers.

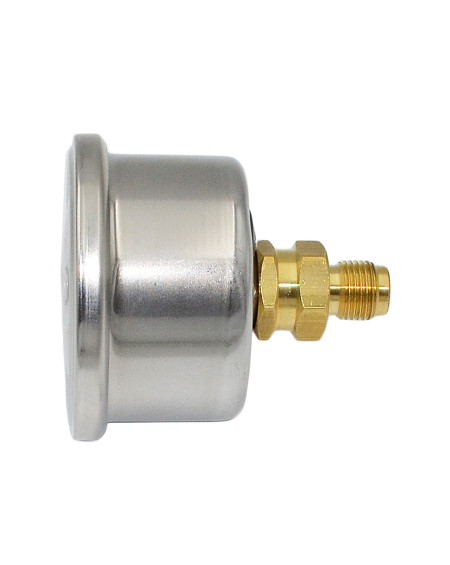

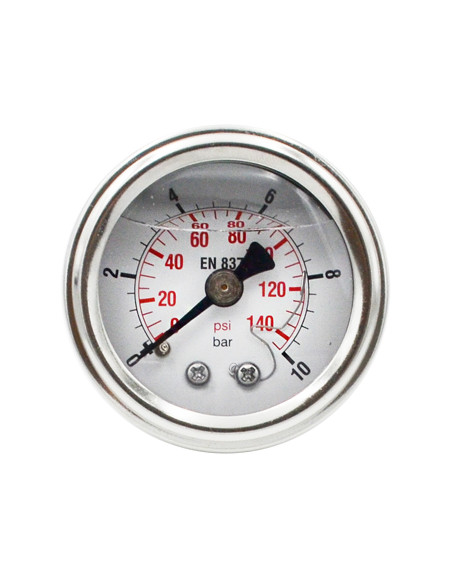

Hydraulic Gauge with over Pressure Stop Spring Pointer Design.
15KB-SP -SERIES
CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures between -10°C and +60°C compatible.
MATERIAL
Size: 1.5'' (42mm) Diameter.
Case : Stainless steel case
Movement : Brass.
Bourdon Tube: Brass.

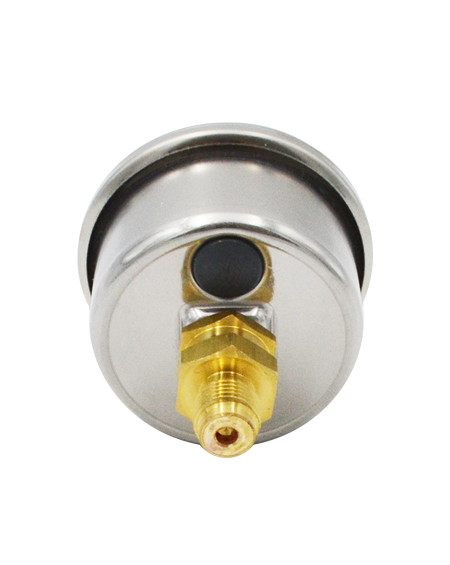

Connection : 1/8’'' or 1/4''BSPT or BSP or NPT Thread, Brass Lower mount.
The Gauge is with over Pressure Pin Stop Spring.
Ranges: pressure gauge 0-2 bar, to 0-350bar.
Protection degree IP65
Particularly sturdy used for plumbing systems, pumps, compressors, machine tools, high pressure water cleaners and refrigerating systems.
Suitable for gaseous or liquid media that will not obstruct the pressure system.
Process industry: power stations, mining, on and offshore, mechanical engineering and plant construction.
