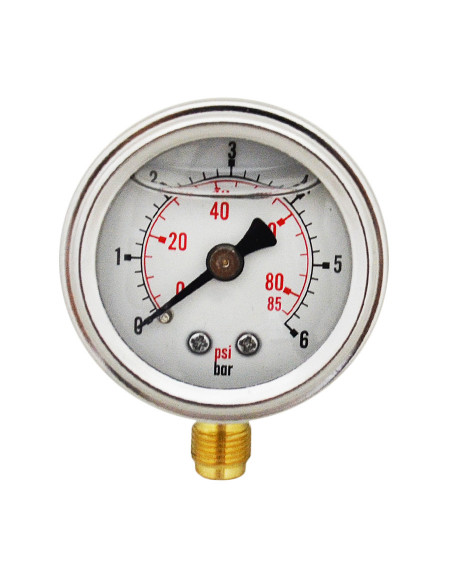

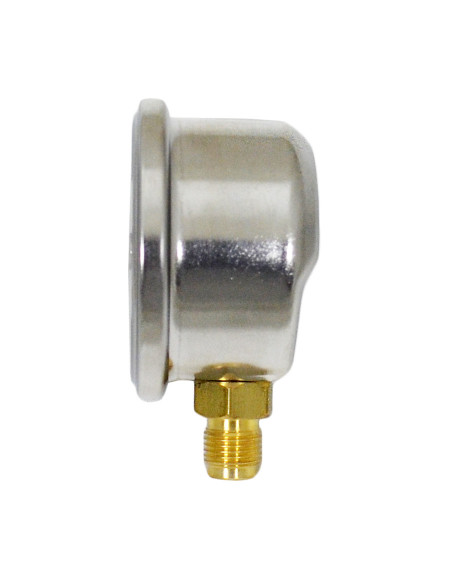

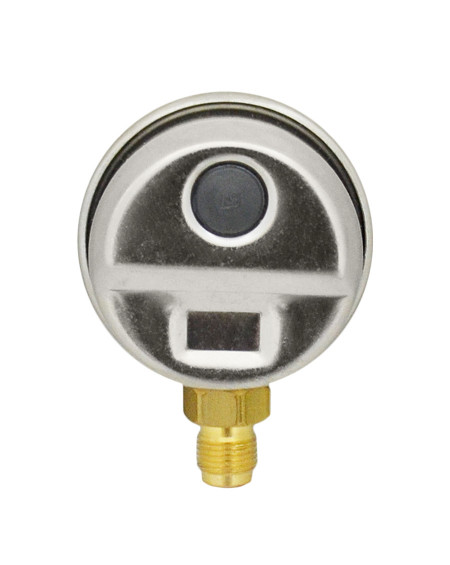

1.5" (42mm) Diameter, Glycerine Filled Pressure Gauge. Stainless steel 300 series case, Polycarbonate lens or Glass lens, Brass 1/8" or 1/4" threads Bottom connection.
15KL-SERIES
CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures between -10°C and +60°C compatible.
MATERIAL
Size: 1.5'' (42mm) Diameter.
Case : Stainless steel case
Movement : Brass
Bourdon Tube: Brass
Connection : 1/8'', 1/4''BSPT or BSP or NPT Threads, Brass Bottom connection.
Protection degree IP65
Ranges: Vacuum, compound and pressure gauge 1bar to 350 bar
Particularly sturdy used for plumbing systems, pumps, compressors, machine tools, high pressure water cleaners and refrigerating systems.
Suitable for gaseous or liquid media that will not obstruct the pressure system.
Process industry: power stations, mining, on and offshore, mechanical engineering and plant construction.
