It allows the detection of exceeding the maximum overpressure limit, by a non-return block of the pointer.
The device ensures that the pressure gauge has been properly used.
In case of excessive pressure peaks (over the max. overpressure limit).
The non-return device blocks the pointer.
As a result, the user cannot ask for a not due replacement from the vendor.
The pin stop device can be applied to all hydraulic series and isometric manometers.

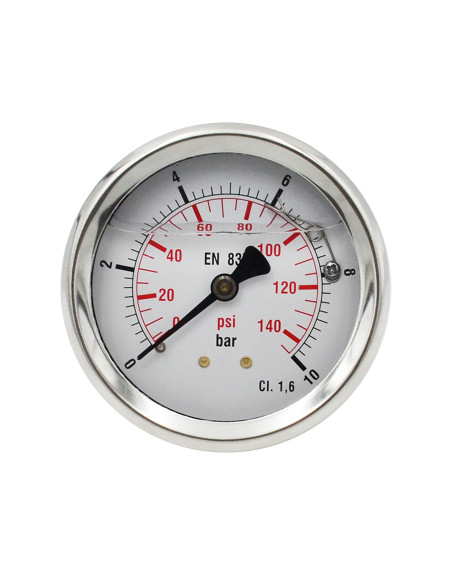

Hydraulic Gauge with over Pressure Stop Spring Pointer Design.
25HJ-SP -SERIES
CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures between -20°C and +60°C compatible.
Material:
Size: 2.5'' (63mm) Diameter.
Case : Stainless steel case
Movement : Stainless Steel.
Bourdon Tube: Stainless Steel.

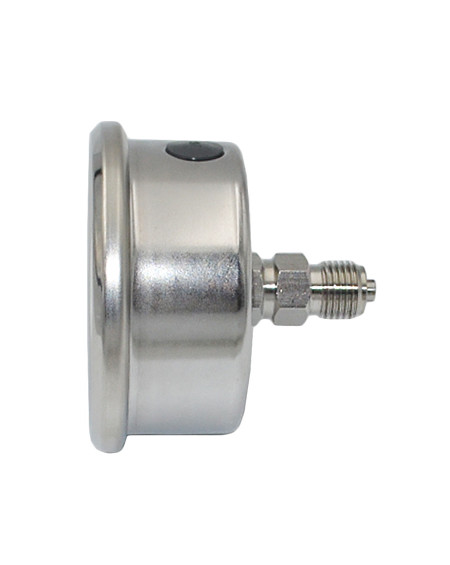

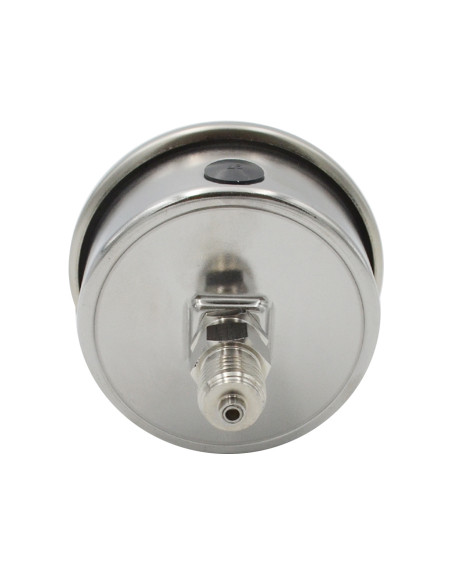

Connection : 1/4'' or 3/8''BSPT or BSP or NPT Thread, Stainless Steel Center Back Connector.
The Gauge is with over Pressure Pin Stop Spring.
Protection degree IP65
Ranges: pressure gauge 0-2 bar, to 0-400bar.
Particularly sturdy used for plumbing systems, pumps, compressors, machine tools, high pressure water cleaners and refrigerating systems.
Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system.
Process industry: chemical/petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction.
