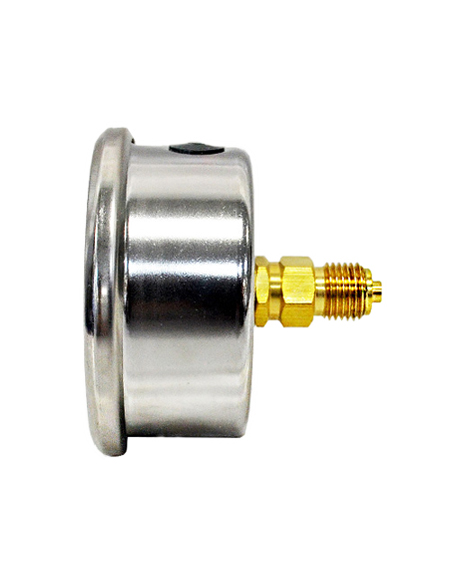

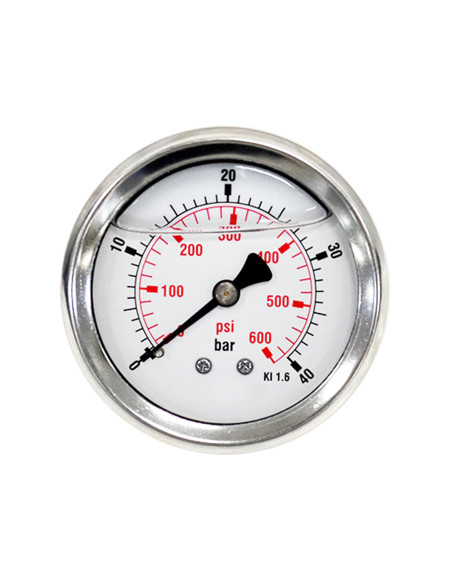

2.5" (63mm) Diameter, Glycerine Filled Pressure Gauge. Stainless steel 300 series case, Polycarbonate lens or Acrylic lens, Brass 1/4" or 3/8" threads Center Back connection.
25KB -SERIES
CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures between -10°C and +60°C compatible.
MATERIAL
Size: 2.5'' (63mm) Diameter.
Case : Stainless steel case
Movement : Brass.
Bourdon Tube: Brass.

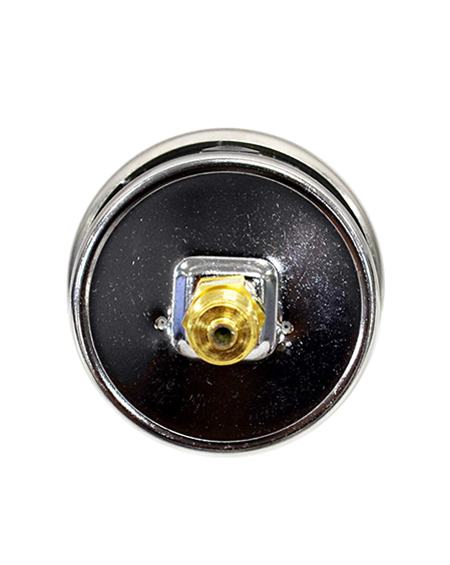

Connection : 1/4'', 3/8'' BSP or BSPT or NPT Thread, Brass Center Back mount.
Ranges: Vacuum, compound and pressure gauge 1bar to 600 bar
Protection degree IP65
Accuracy 1.6% Full Scale.
Particularly sturdy used for plumbing systems, pumps, compressors, machine tools, high pressure water cleaners and refrigerating systems.
Suitable for gaseous or liquid media that will not obstruct the pressure system.
Process industry: power stations, mining, on and offshore, mechanical engineering and plant construction.
