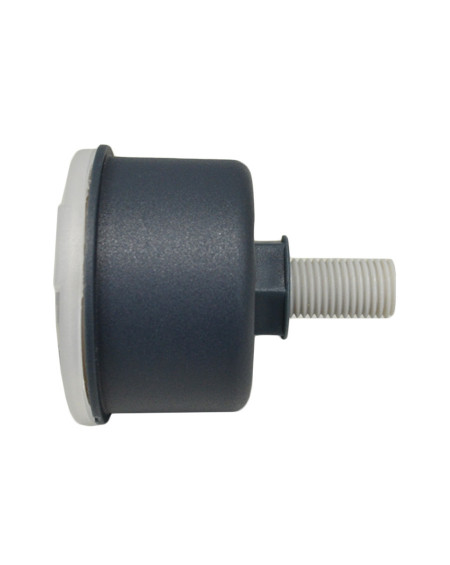

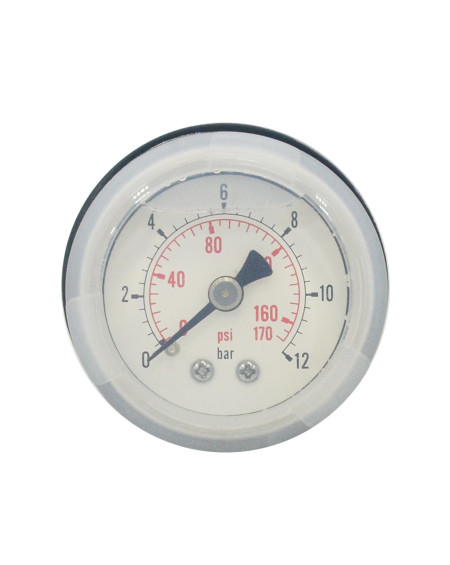

1.5'' (42mm) Diameter, PP Glycerine Filled Pressure Gauge. PP case and lens, PP 7/16'' threads Center Back connection with PP Black Cover Case for Panel Mounting.
15LU7-PCC -SERIES
CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures between -10°C and +60°C compatible.
MATERIAL
Size: 1.5'' (42mm) Diameter.

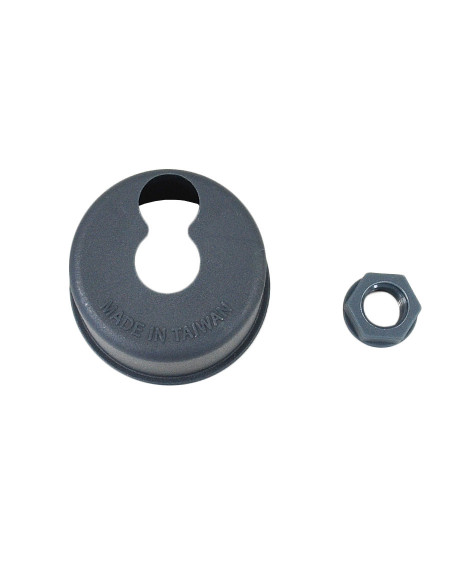

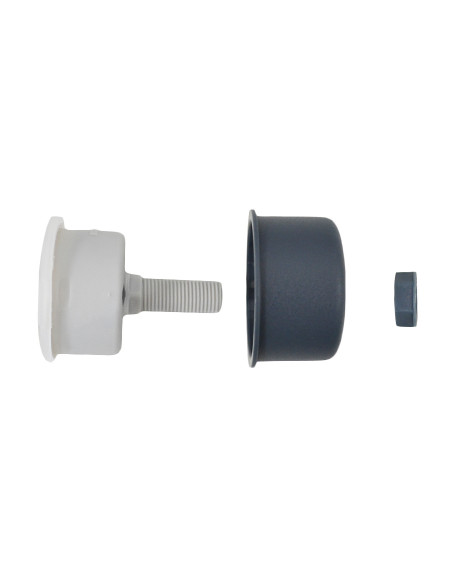

Case : PP case. With PP Black Cover Case for Panel Mounting.
Movement : Brass
Bourdon Tube: Brass

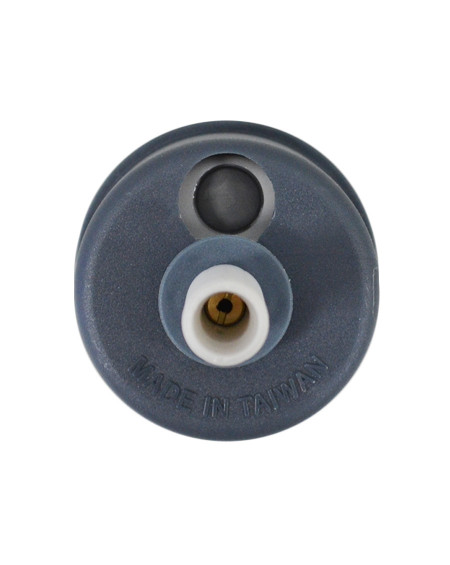

Connection : PP 7/16'' Thread Center Back Connection.
Ranges: Vacuum, compound and pressure gauge 1bar to 25 bar
Accuracy 3-2-3% Full Scale.
Protection degree IP65.
Particularly sturdy used for plumbing systems, pumps, compressors, machine tools, water cleaners and refrigerating systems.
