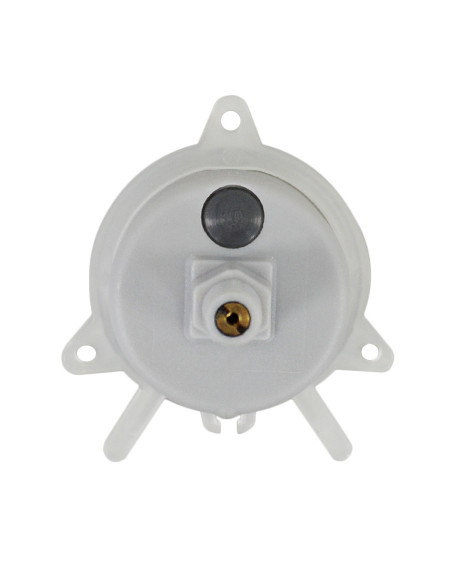

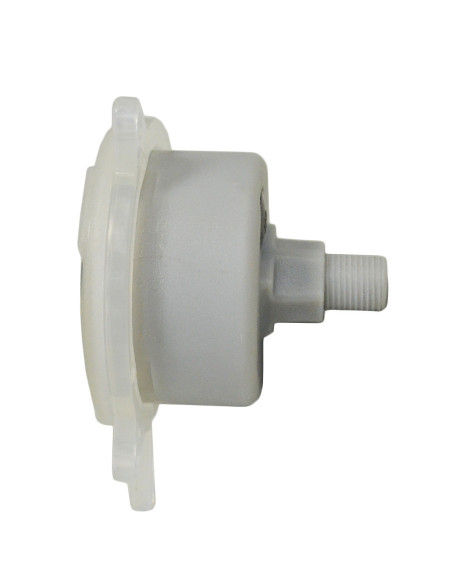

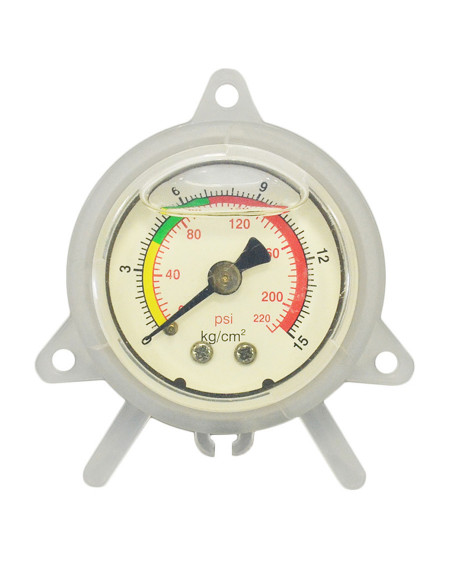

1.5" (42mm) Diameter, PP Glycerine Filled Pressure Gauge. PP case and lens, PP 1/8'' BSPT threads Center Back connection with PP Front Flange for Panel Mounting.
15LY8 -SERIES
CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures between -10°C and +60°C compatible.
MATERIAL
Size: 1.5'' (42mm) Diameter.

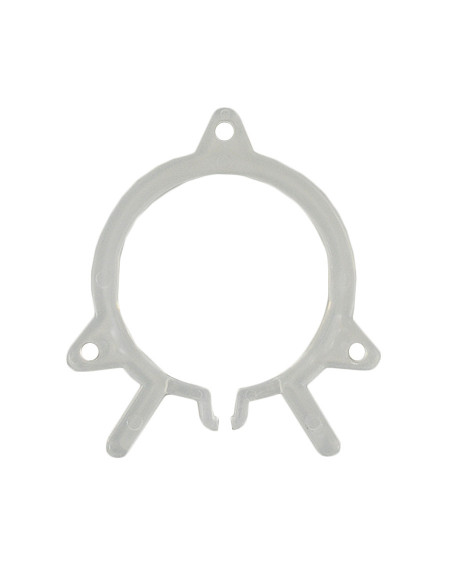

Case : PP case. With PP front flange for Panel Mounting.
Movement : Brass
Bourdon Tube: Brass
Connection : PP 1/8’’BSPT Thread Center Back Connection.
Ranges: Vacuum, compound and pressure gauge 1bar to 25 bar
Accuracy 3-2-3% Full Scale.
Protection degree IP65.
Particularly sturdy used for plumbing systems, pumps, compressors, machine tools, water cleaners and refrigerating systems.
