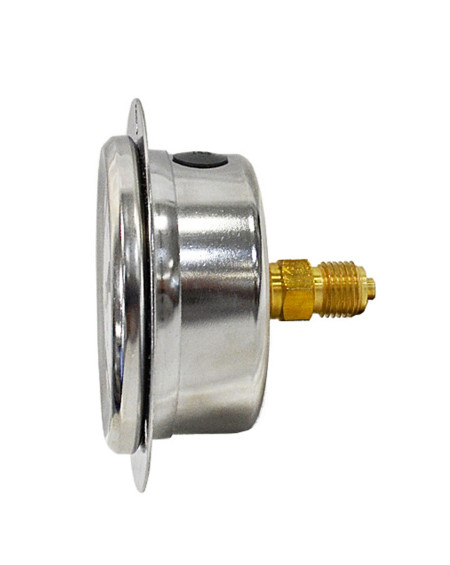

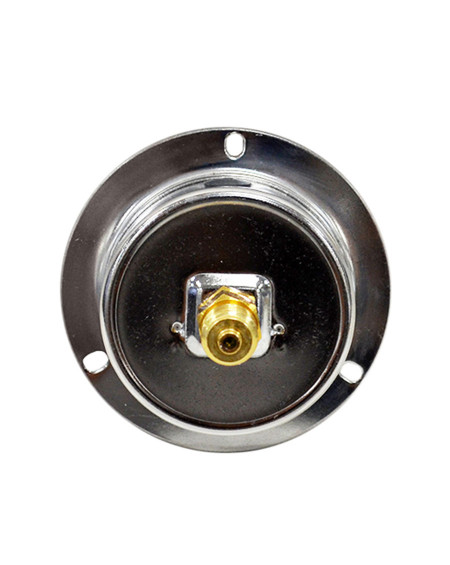

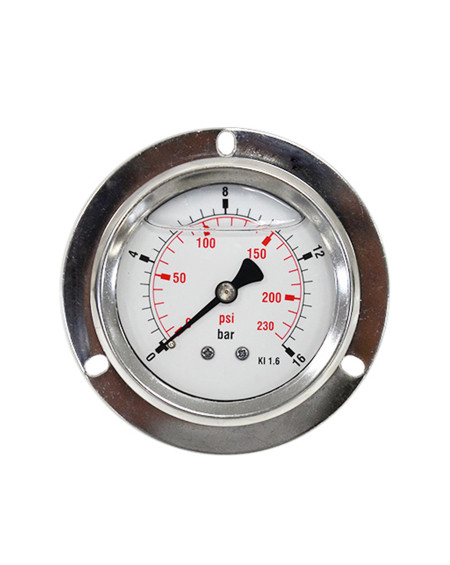

2.5" (63mm) Diameter, Glycerine Pressure Gauge. Stainless steel 300 series case, Polycarbonate lens or Acrylic lens or Glass Lens or Safety Glass Lens. Brass 1/4" or 3/8" threads Center Back connection with Stainless Steel Front Flange
25VB -SERIES
CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures between -10°C and +60°C compatible.
MATERIAL
Size: 2.5'' (63mm) Diameter.
Case : Stainless steel case with Stainless Steel Front Flange.
Movement : Brass.
Bourdon Tube: Brass.
Connection : 1/4'', 3/8'' Brass Center Back mount
Ranges: Vacuum, compound and pressure gauge 1bar to 600 bar
Particularly sturdy used for plumbing systems, pumps, compressors, machine tools, high pressure water cleaners and refrigerating systems.
Suitable for gaseous or liquid media that will not obstruct the pressure system.
Process industry: power stations, mining, on and offshore, mechanical engineering and plant construction.
