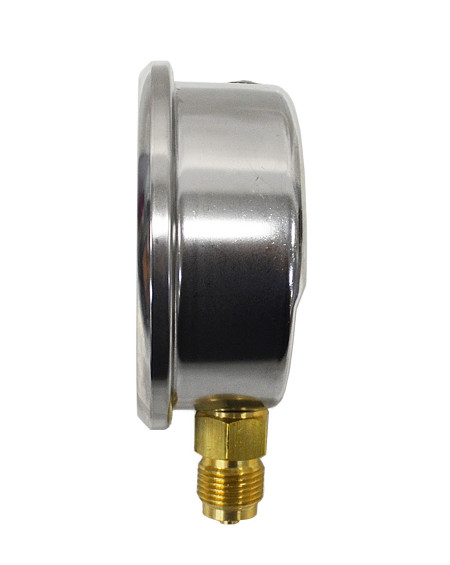

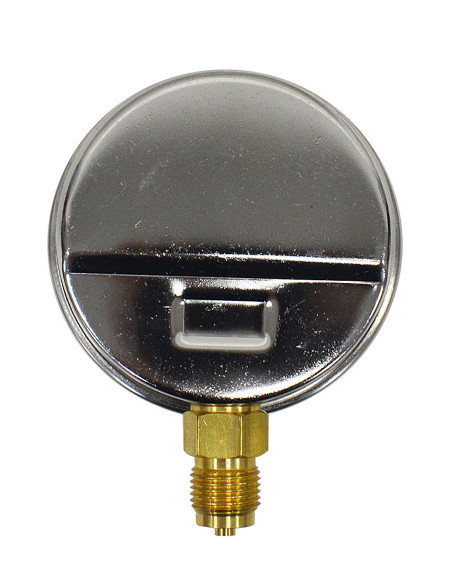

4.0" (100mm) Diameter, Glycerine Filled Pressure Gauge. Stainless steel 300 series case, Polycarbonate lens or Glass lens or Safety Glass, Brass 1/4" or 3/8" or 1/2'' threads Bottom connection.
40KL -SERIES
CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures between -10°C and +60°C compatible.
MATERIAL
Size: 4.0'' (100mm) Diameter.
Case : #304 Stainless steel case
Movement : Brass.
Bourdon Tube: Brass.
Connection : 1/4'', 3/8'', 1/2'' Brass Bottom mount.
Ranges: Vacuum, compound and pressure gauge 1bar to 600 bar
Protection degree IP65
Accuracy 1.6% Full Scale.
Particularly sturdy used for plumbing systems, pumps, compressors, machine tools, high pressure water cleaners and refrigerating systems.
Suitable for gaseous or liquid media that will not obstruct the pressure system.
Process industry: power stations, mining, on and offshore, mechanical engineering and plant construction.
