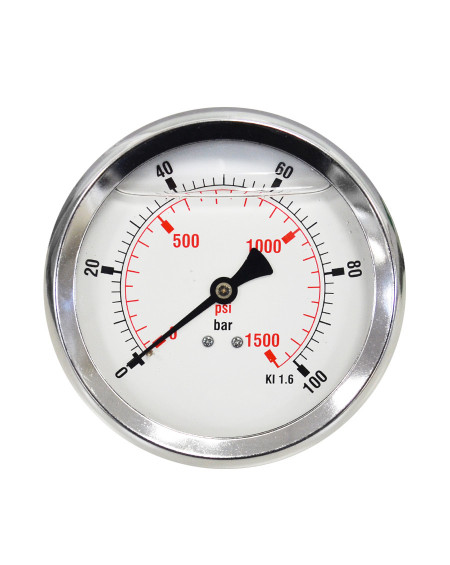

4" (100mm) Diameter, Stainless steel 300 series case, Glycerine Filled Pressure Gauge. Polycarbonate or Acrylic or Glass lens or Safety Glass, 1/4" or 3/8", 1/2" threads, Brass Center back connection.
40KL -SERIES
CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures between -10°C and +60°C compatible.
MATERIAL
Size: 4'' (100mm) Diameter.
Case : #304 Stainless steel case
Movement : Brass.
Bourdon Tube: Brass.

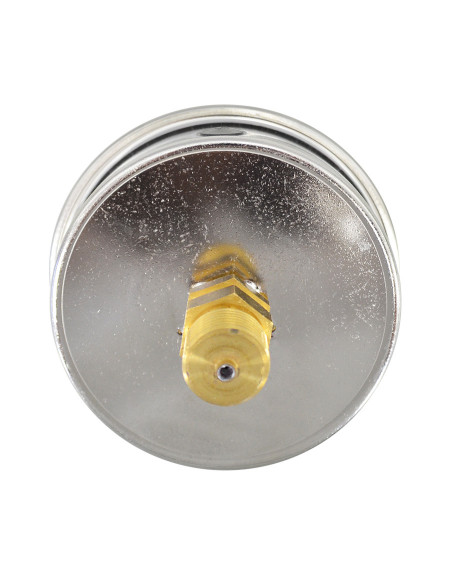

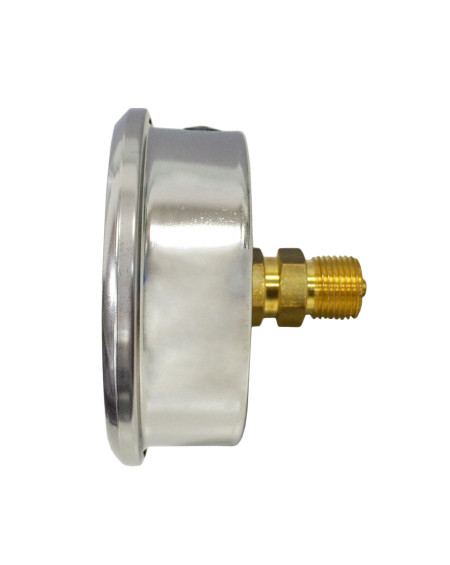

Connection : 1/4'', 3/8'' and 1/2'' Brass Lower mount.
Ranges: Vacuum, compound and pressure gauge 1 bar to 600 bar
Particularly sturdy used for plumbing systems, pumps, compressors, machine tools, high pressure water cleaners and refrigerating systems.
Suitable for gaseous or liquid media that will not obstruct the pressure system.
Process industry: power stations, mining, on and offshore, mechanical engineering and plant construction.
