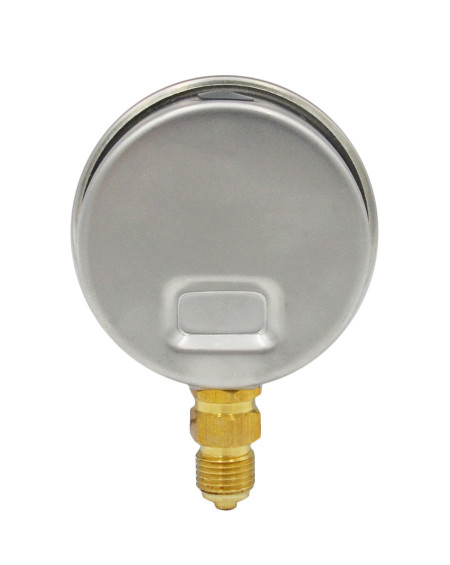

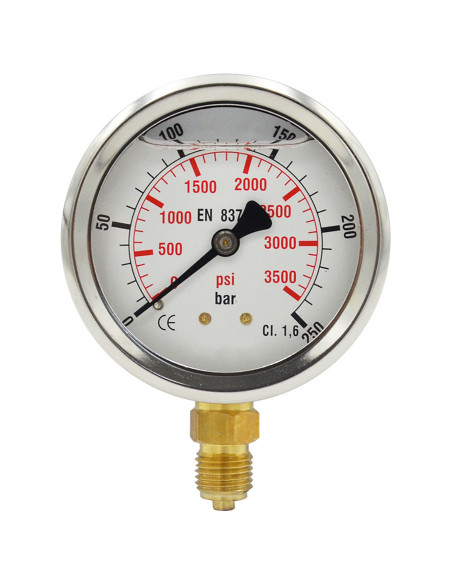

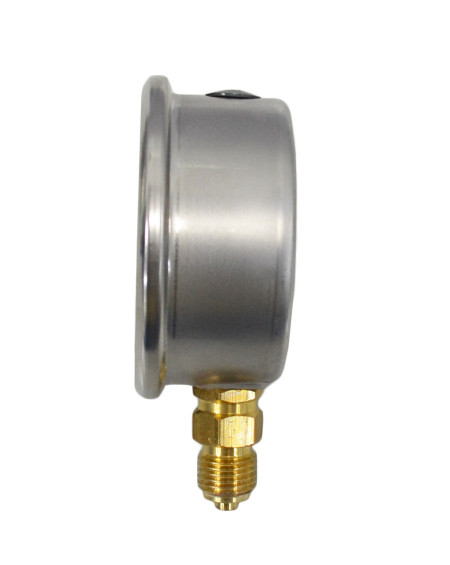

2.4" (62mm) Diameter, Glycerine Filled Pressure Gauge. 304 Original Stainless steel surface case, Polycarbonate lens or Glass or Safety Glass lens, Brass 1/4" or 3/8" threads Center back connection.
24KL -SERIES
CONSTRUCTIONAL FEATURES
Pressure gauge for all non-corrosive fluids at temperatures between -10°C and +60°C compatible.
MATERIAL
Size: 2.4'' (62mm) Diameter.
Case: #304 Original Stainless steel surface case
Movement: Brass
Bourdon Tube: Brass
Connection: 1/4'', 3/8'' NPT or BSPT or BSP Thread, Brass bottom connection.
Ranges: Vacuum, compound and pressure gauge 1bar to 600bar
Accuracy 1.6% Full Scale.
Protection degree IP65.
Particularly sturdy used for plumbing systems, pumps, compressors, machine tools, high pressure water cleaners and refrigerating systems.
Suitable for gaseous or liquid media that will not obstruct the pressure system.
Process industry: power stations, mining, on and offshore, mechanical engineering and plant construction.
